Specification
·Part#: BPC 1/2*1/2
·Size: 1/2” x 1/2”
·Material: PPSU
·Certification: cUPC, NSF/ANSI 61
·Suitable Pipe Type: PEX, PE-RT, Copper, HDPE, CPVC
·Application: Cold and Hot Drinking Water System, HVAC circulation system, Air System, etc.
·Working Condition: 36-200°F (2-93℃)@ 100 psi (0.69MPa)
·High Temperature working condition: 180°F (82℃)@ 200 psi (1.38MPa)
·Custom Cap Color: Grey, Black, Green

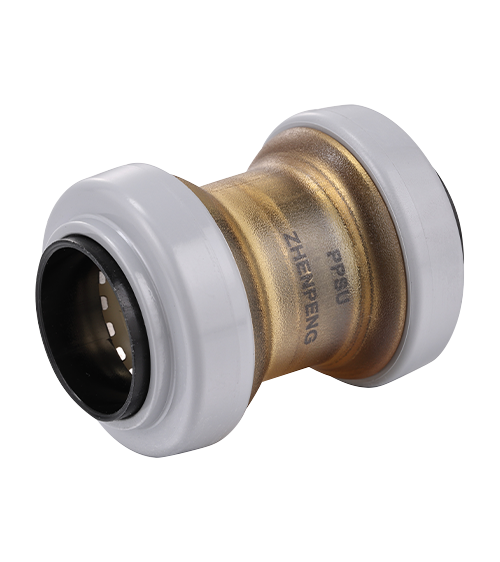

Push Fit Coupling
Part Number | Size Chart |
BPC 1/2*1/2 | 1/2" x 1/2" |
BPC 3/4*3/4 | 3/4" x 3/4" |
BPC 1/2*3/4 | 1/2" x 3/4" |
Advantages:
·Easy and quick installation
·Simple and repeatable disassembly
·Visually check the installation effect
·Reduce installation risk
·Flexible pipe selection
·Environment Friendly, Recycled materials
·Full flow design, low loss
Installation Procedures
1. Cut Pipe, make sure the incision is vertical and free of defects
2. Trim the rough edge of the pipe end
3. Insert the fitting in a rotating manner
4. Check with hand-pull and visual
Ningbo Zhenpeng Plumbing Fittings Co., Ltd
